T-type 95 concealed hinge with integrated or add-on soft closing for doors from 16 to 34mm thickness. T-type design for the fastest 3Way snap-on door installation and consistent performance through the whole cabinet life-cycle.
Optimized movement of thick door
The thick door hinge kinematics with 95° opening enables:
-Optimized opening and closing of doors with thickness up to 34mm
-Narrow reveals
-Reliable and consistent performance on various door sizes and weights
Find a hinge for your application
Are you unsure which hinge is the most suitable for your cabinet? Try Product Selector to discover our full range of products and find the one that best meets your needs and expectations.
3Way snap-on mounting
Simply the fastest! Allows for intuitive hinge-to-plate mounting in 3 directions.
This will help the enhanced mounting experience. Attaching tall and heavy doors with several hinges to the cabinet becomes easy and comfortable. Choose which pin (front, top, or back) on a plate you will catch and simply snap it on.
Highly tolerant
Efficient performance in marginal values of drilling tolerances. Reliable door closing even in cases of a non-perfect hinge alignment. Hinge to plate attachment with an extended distance between the snap-on points assures stability and rigidity.

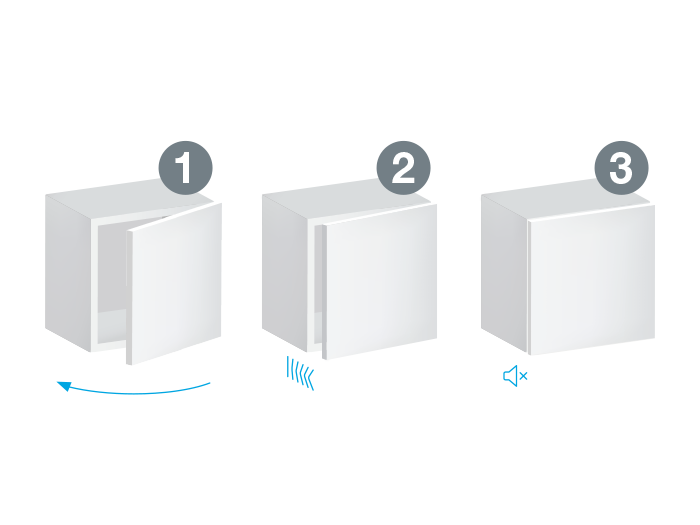

Consumer preferred door closing
Titus Glissando hinge damping provides a ConfidentClose, consumer-preferred way of soft closing action*. It is characterized by:
- fast closing
- late start of deceleration action
- quiet landing with SoftTouch.
*Based on results of Titus research made in UK, Germany and Slovenia. Click here for more information.
Technical Overview
|
Opening angle: |
95° |
|
Cranking: |
0mm, 5mm, 9mm, 17mm |
|
Door thickness: |
16-34mm |
|
Door tab K: |
3-9mm |
|
Mounting Mode: |
3Way snap-on |
|
Mounting plate type: |
cruciform, linear (all T-type mounting plates) |
|
Mounting plate height: |
0mm,1mm, 2mm, 3mm,4mm |
|
Hinge cup drilling depth: |
12.0 mm |
|
Soft closing options: |
-integrated damping into the hinge cup |
|
Hinge cup drilling pattern: |
45/9.5mm, 48/6mm |
| Hinge constant: |
13 mm |
|
Overlay: |
up to 22 mm |
|
Mounting plate fixing: |
Screw-on ready, EasyFix, fixing dowels for machine insertion. **expando dowels, euro screws, wood screws – available upon request |
